Slope stability analysis

4 Posts
3 Users
0 Reactions
959 Views
(@13137990154)
Active Member
Joined: 2 years ago
Posts: 6
Topic starter

How to use this software to carry out stability analysis of two-dimensional slope (strength reduction method)



Quote
Tien Nguyen (Smith)
(@tienlk2004)
Member Admin
Joined: 3 years ago
Posts: 48


Hi @13137990154,

You can enter the Strength Reduction Factor (SRF) in the material properties dialogue, as demonstrated in the 2D Granular Flow simulation provided in this example: ( https://geoxsph.com/wp-content/uploads/2023/03/2D-Granular-flow-tutorial-1.pdf).

With GeoXPM, you can set up and run multiple problems with different SRF values and compare the results to identify when and where the failure plane forms, and also the post-failure behaviours (see the attached picture)

This post was modified 2 years ago by Tien Nguyen (Smith)


ReplyQuote
(@madelestin)
Active Member
Joined: 5 months ago
Posts: 10


@tienlk2004

may i know how to plot as the attached picture that you attached before, the SRF.png?



ReplyQuote
Tien Nguyen (Smith)
(@tienlk2004)
Member Admin
Joined: 3 years ago
Posts: 48

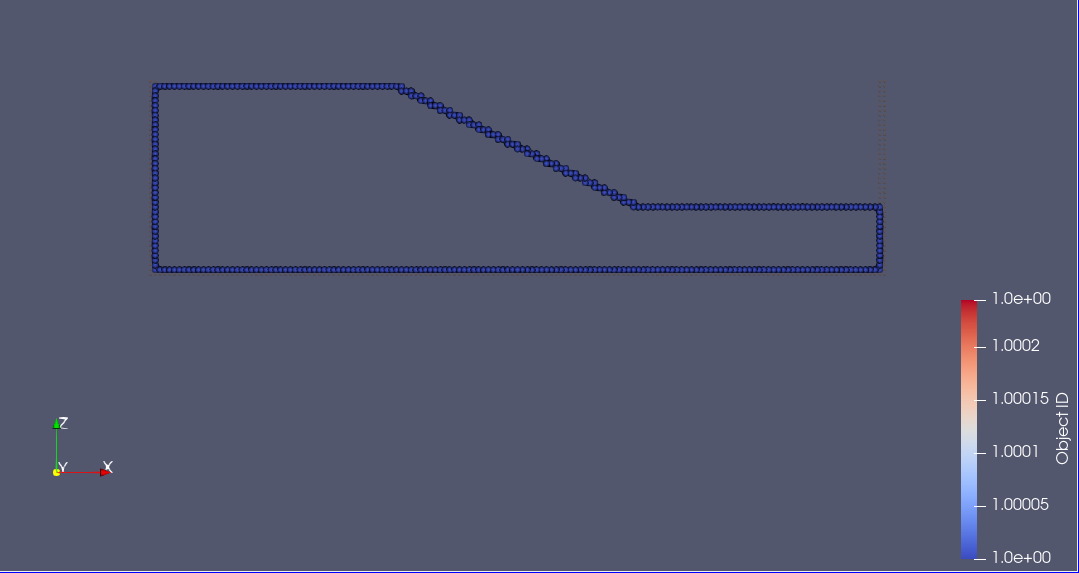

@madelestin You can visualise GeoXPM outputs directly in ParaView.

For the image in SRF.png, I simply checked the accumulated plastic strain to identify the failure circle, took a screenshot, and repeated this for different SRF values. I then combined them manually.

Alternatively, you can import the output files from all SRF runs into ParaView to create an animation if preferred.



ReplyQuote
